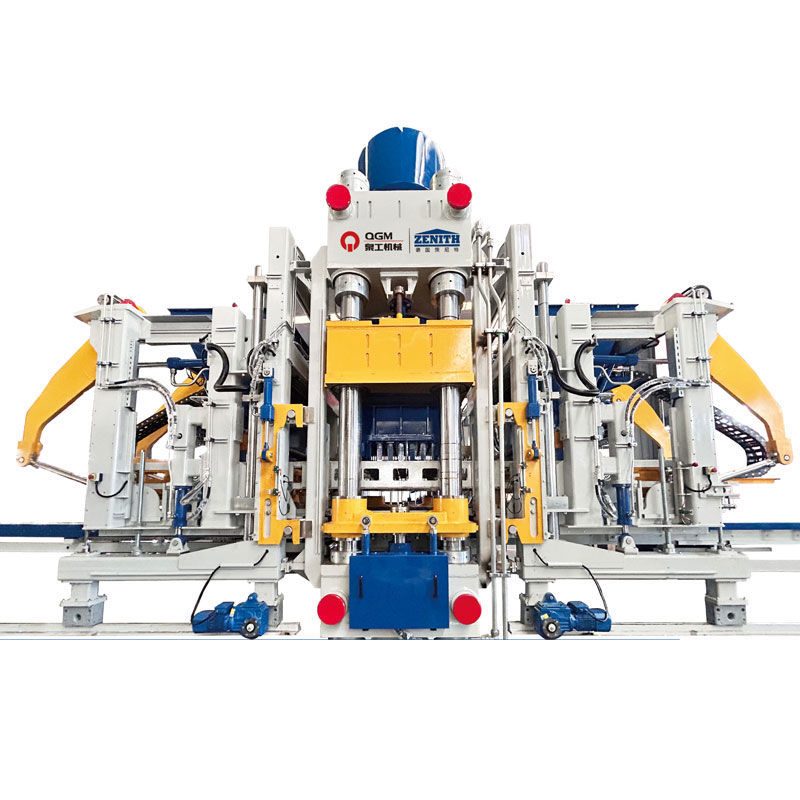

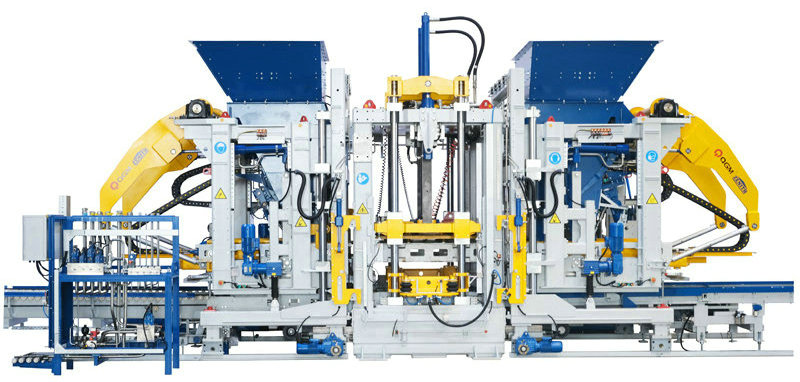

ZN2000C Concrete Block Machine

ZN2000C Concrete Block Machine bụ ihe eji eme onwe ya. A na-eji ọgụgụ isi dị elu na akpaaka mara ya, ma na-eji teknụzụ dị elu dị elu dị ka digitalization na usoro ozi, bụ nke a na-eji na-ewu obodo ọhụrụ na obodo sponge.

Atụmatụ:

Tebụl ịma jijiji abụọ, moto servo asatọ (nhọrọ) akụrụngwa kacha elu

Mgbakọ modular maka mmezi dị mfe karịa ụdị brik dị iche iche na-emepụta

Ikike dị elu, nrụpụta dị elu

Pallet nha 1400x1400/1300mm

Akpụ ebe 1320x1350/1250mm

Ogologo ngwaahịa 40-500mm

Ọnụọgụ nke ngọngọ brik nwere oghere: 18 blocks/ebu (390x190x190mm)

brik ọkọlọtọ: 105 ngọngọ / ebu (240x115x53mm)

Brick okporo ụzọ: 66 ngọngọ / ebu (200x100x60mm)

Nha akụrụngwa Ihe ruru. 10,000

Ihe ruru. 4,700

Ihe ruru. 3,400

Sistemụ ịma jijiji kacha ike mkpali nke tebụl ịma jijiji: 200/kN

Ike mkpali kacha elu nke isi pịa: 40/kN

Igwe ọkụ eletrik ngụkọta ike (ntụaka): 231/kW

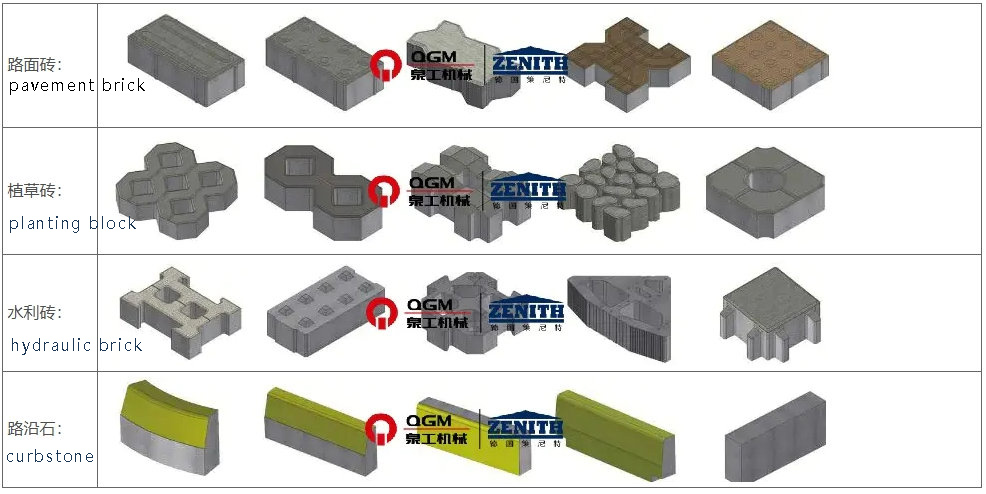

Eserese atụmatụ nke ihe atụ brik nke akụrụngwa mepụtara

Uru nka

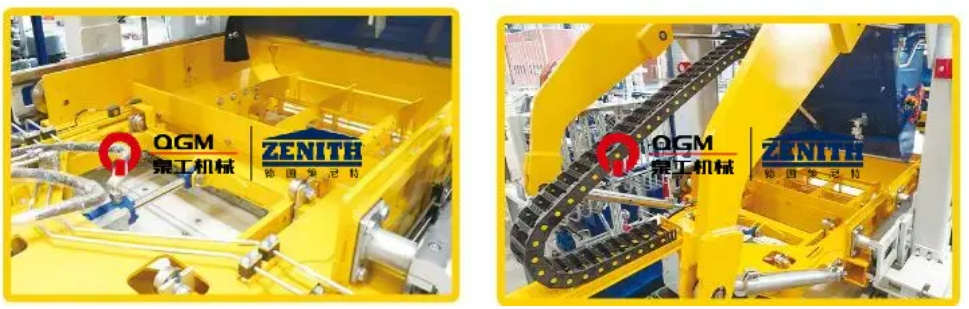

1. High-quality frame design of German version

The mainframe frame adopts the high-weded frame frame framed by Zenit's patented technology, nke a na-agbado site na nchara ngalaba ahaziri iche ahaziri ahazi, na-eji ezi uche emewe, ọbụna na mara mma ịgbado ọkụ, na dum etiti na-enweta ọgwụgwọ vibration ịka nká iji hụ na ịdị elu dị elu na nkwụsi ike dị elu nke etiti ahụ. Usoro nhazi nhazi dị elu na-eme ka isi ihe na-agbasawanye, na akụkụ nke oghere oghere na mmechi, ọrụ isi mmịpụta (osisi), ọrụ ntinye osisi polystyrene, wdg nwere ike ịgbakwunye ya.

2.Automatic ngwa ngwa mgbanwe usoro

Mgbe ebu na-agafere onye ọbịa ọnọdụ, ya ebuli usoro aghọta akpaka ebu mgbanwe na ngwa ngwa ebu mgbanwe ngwaọrụ. A na-ejikọta ihe ndị dị elu na nke dị ala na-akpaghị aka na pneumatically, nke dị mma, dị mma, dị mfe iji rụọ ọrụ ma dị mma iji nọgide na-enwe. Ọ kachasị gụnyere:

Pneumatic ebu clamping ngwaọrụ: Ọ tumadi mejupụtara ebu bracket na pneumatic clamping mkpara na abụọ, nke na-enyere aka clamping na idozi ebu na damping mgbe usu igwe na-ebu pre-vibration na isi vibration, nke mere na iji nweta kacha mma vibration mmetụta na ogologo ọrụ ndụ nke ebu.

Ngwa mkpuchi pneumatic indenter: a na-edozi indenenter site na ngwaọrụ clamping nwere airbag, nke nwere ike dochie ngwa ngwa na ngwa ngwa, belata oge ndochi na nrụnye, ma hụ na docking ziri ezi nke etiti ebu ala na elu elu.

Ngwaọrụ ntinye ọkụ eletrik: A na-eji ihe eji eme ihe na-emepụta ihe na-emepụta ihe na-emepụta ihe na-emepụta ihe na-emepụta ihe n'ime igwe isi na iji na-eri nri na wepụ ihe ndị na-emepụta ihe na igwe site na ihe nkwụnye ọkụ eletrik, nke a na-etinye n'ọtụtụ n'ime ihe ndị dị na ahịa ahụ, a pụkwara iji ihe mkpuchi pụrụ iche mee ihe dị iche iche.

Ngwá Ọrụ Na-agbanwe Akpụkpọ: Awụnyere na etiti nke igwe isi, a na-eji ya ebuli na ịkwanye ihe ndị na-emepụta ihe mgbe ị na-agbanwe ihe ndị a na-emepụta, nke a na-eji eletrik eletrik na ngwaọrụ ije ije.

3. Usoro mmepụta ihe

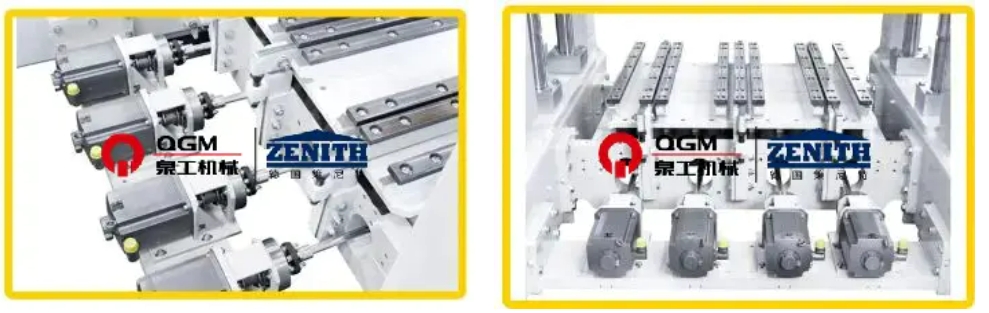

4. “Ultra-dynamic” servo vibration sistemu:

"Ultra-dynamic" servo vibration technology bụ ụdị dị elu-arụmọrụ, onwe-adaptive usoro ịma jijiji nke a haziri maka igwe brik; moto servo nwere ike ime nzaghachi ngwa ngwa n'oge mmeghachi omume dị mkpirikpi, na-achọpụta arụmọrụ vibration kachasị elu, na-ebelata ọnụ ọgụgụ nke ciment a na-eji ma na-ebelata usoro mmepụta ihe, na-emepụta ihe ndị na-emepụta ihe dị elu; usoro ịma jijiji nwere ike ime mgbanwe na mkpa nke ngwaahịa dị iche iche. The servo moto nwere ike ime ka ngwa ngwa nzaghachi na nke kacha nta mmeghachi omume oge ịghọta kasị elu vibration arụmọrụ, nke nwere ike ibelata ego nke ciment, ebelata mmepụta okirikiri, na-emepụta ukwuu kọmpat ngwaahịa ngwaahịa; Enwere ike ịmegharị usoro vibration na-agbanwe agbanwe na mkpa mmepụta nke ngwaahịa dị iche iche.

Ngalaba ịma jijiji 8 nwere nguzozi igwe edobere n'otu n'otu site na draịva 8 servo;

8 servo Motors, n'otu n'otu n'otu n'otu n'otu n'otu na-nkwado na mpụga vibration ibé nke moto na-akwado;

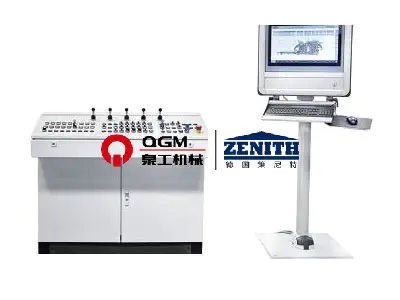

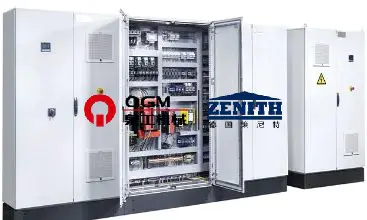

5. Usoro nchịkwa servo ziri ezi

Site na nzaghachi mgbaàmà, jikwaa usoro na ọsọ nke ịma jijiji, njikwa mmegharị mmekọrịta, njikere dị elu, nwere ike mechaa n'ime obere oge nke ịma jijiji na mkpochapụ ịma jijiji, iji nyere aka belata okirikiri ịkpụzi, yana mmetụta braking ka mma. Site na ọnọdụ na ọsọ nke okpukpu abụọ mechiri emechi, na-achịkwa ike na-akpali akpali naanị na-eme n'ụzọ kwụ ọtọ, na-eme ka ike na-akpali akpali dị irè, ma n'otu oge ahụ na-ezere ike imebi ihe na-eme ka ọ dị elu, na-agbatị ndụ ọrụ nke ngwá ọrụ, na-enwe ike ịmepụta ntọala dị iche iche maka ngwaahịa dị iche iche chọrọ, ma na-emepụta ngwaahịa dị elu.

A na-ejikwa valvụ ntụzịaka nke nha na nzaghachi spool, nke nwere oge nzaghachi ngwa ngwa, isi akwụkwọ akụkọ, ihe ọkpụkpụ, ụgbọ ala mkpokọta na ụgbọ ala akwa. A na-anakwere usoro nchịkwa nke mechiri emechi nke ihe mmetụta / encoder-PLC-proportional directional valve-cylinder, nke na-eme ka njikwa ahụ dịkwuo mma, na omume nke cylinder ngwa ngwa ma kwụsie ike; Ụlọ ọrụ hydraulic na-anabata mgbapụta piston na-agbanwe agbanwe, nke na-adịghị emepụta mmanụ nrụgide ma na-ebutu mgbapụta ahụ mgbe usoro hydraulic rutere nrụnye setịpụrụ iji belata oriri ike; ọdụ ụgbọ mmiri hydraulic na-anakọta mmanụ na-enye aka na-ekpo ọkụ, nke na-ebelata oriri ike; na ụlọ ọrụ hydraulic na-anabata mmanụ ọkụ na-enye aka na-ekpo ọkụ, nke na-ebelata oriri ike ma na-ebelata oriri ike. Ụlọ ọrụ hydraulic na-anabata mmanụ ọkụ na-enye aka na-ekpo ọkụ, nke enwere ike iji mee ihe maka ọtụtụ omume n'otu oge, na nrụgide nke usoro hydraulic kwụsiri ike; usoro hydraulic nwere ihe mmetụta nrụgide, nke nwere ike igosi na panel ọrụ maka ikiri dị mfe; usoro hydraulic nwere ihe mmetụta okpomọkụ, ndị na-ekpo ọkụ na ndị na-ekpo ọkụ, nke nwere ike ịchịkwa okpomọkụ mmanụ nke ọma, nke mere na mmanụ hydraulic na-arụ ọrụ nke ọma.

6. Usoro hydraulic
